PI 4K LINUX STB
PI 4K LINUX STB
$200.00

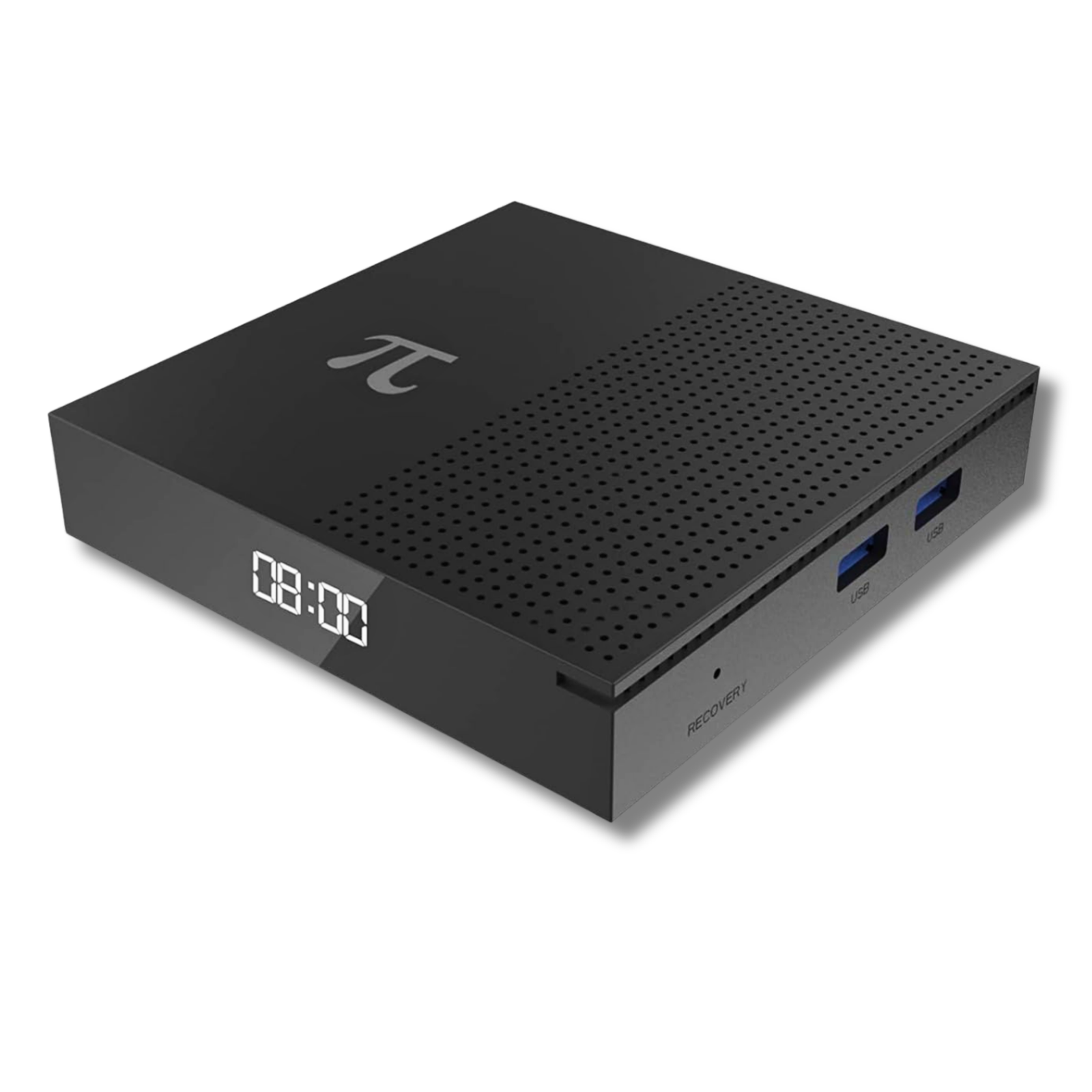

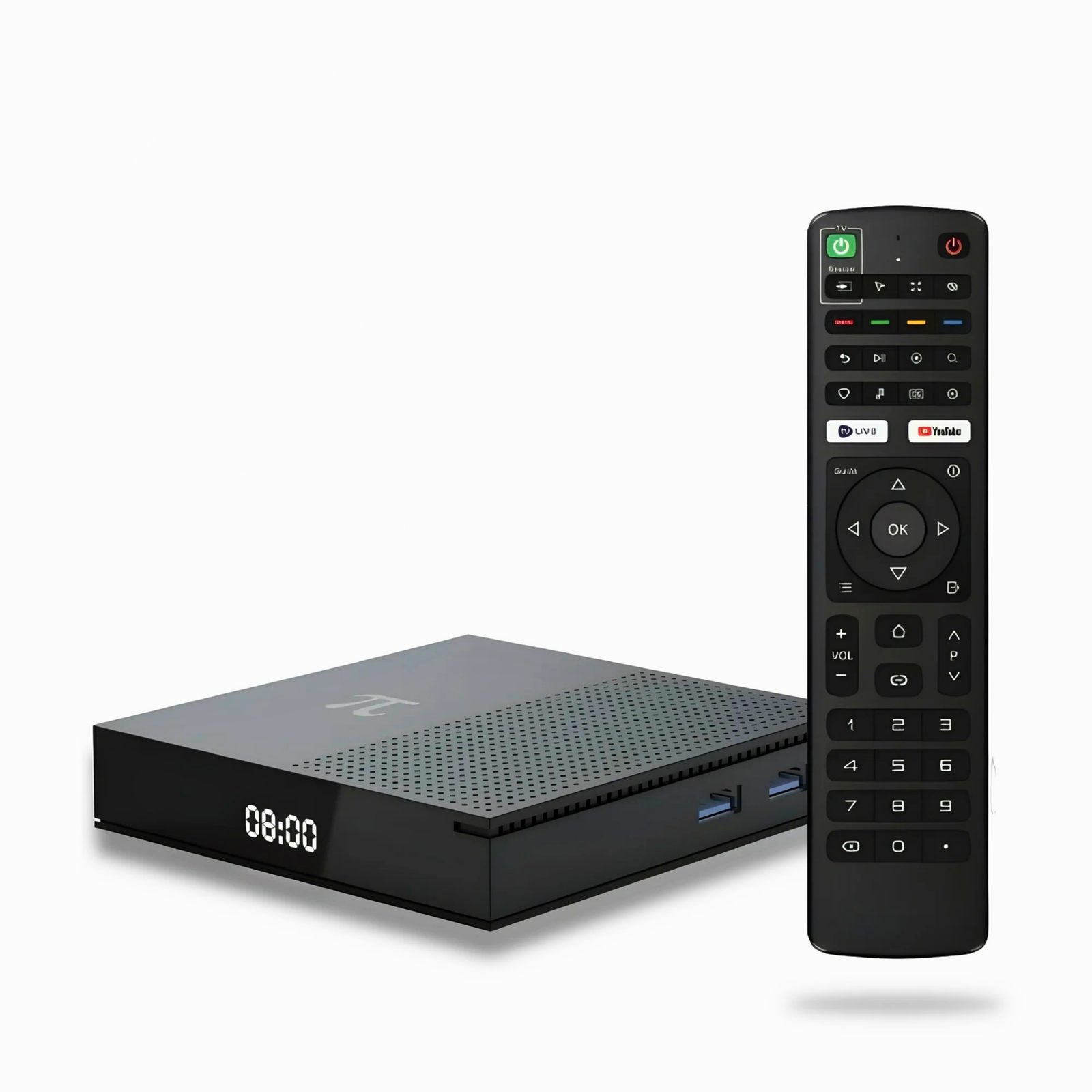

Aceconn PI 4K Linux STB is a Linux-based smart TV streaming & IPTV set-top box designed for delivering 4K video playback, network streaming, and general multimedia features with a lightweight Linux system and modern codec support.
- 4K Ultra HD Playback — supports up to 4K @ 60 Hz resolution with HDR10+ for sharper, vibrant video.
- Linux-Based OS — lightweight, stable Linux firmware for smooth streaming and IPTV use.
- Dual-Band Wi-Fi + Ethernet — reliable network connectivity via 2.4 GHz/5 GHz Wi-Fi and wired LAN.
- Wide Codec Support — decodes modern formats including H.265/HEVC, VP9, H.264, MPEG-2.
- Expandable & Connected — USB + microSD support, Bluetooth peripherals, and OTT app/navigation support (depends on firmware).
Specifications
Operating System: Linux 4.9 / Customized Linux OS
CPU: Quad-core ARM Cortex-A55 (GK6323)
RAM: 1 GB DDR3
Internal Storage: 8 GB eMMC
Expandable Storage: microSD/TF card support (up to 128 GB)
Networking
Wi-Fi: Dual-band MIMO Wi-Fi (2.4 GHz & 5 GHz)
Ethernet: 100 Mbps LAN port
Bluetooth: Yes (Bluetooth supported for accessories)
Online Upgrade: OTA (Over-the-air) support
Decoder
Max Output Resolution: 4K @ 60 Hz
Video Codecs Supported:
H.265/HEVC
VP9
MPEG-2/4, H.264
AVS, AVS Plus
HDR: HDR10+ support for better contrast and color
DRM: Content protection & Widevine L1 support (varies by firmware)
Dimensions
Approx Size: ~107 × 107 × 20 mm (compact set-top box design)
Weight: ~0.60 kg
Ports
HDMI: 1 × HDMI 2.1 (4K video output)
USB:
1 × USB 2.0
1 × Mini USB-C port
Ethernet: 1 × RJ45 (100 Mbps)
Audio/Video Outputs: HDMI + RCA/CVBS (depending on model)
Power Input: DC 5 V / 2 A adapter
Power input
Adapter: Included DC 5 V ⎓ 2 A power supply
Typical Consumption: ~≤10 W maximum; <0.5 W standby
Optional
OTT Middleware: Built-in smart content navigation and portal interface (e.g., TVONAIR or similar)
Online Firmware Updates: OTA system updates supported
IPTV & Streaming Apps: Internet services (browser, IPTV, YouTube, etc.) supported (depends on firmware)
Bluetooth Peripherals: Supports Bluetooth keyboards, mice, and other accessories
External USB Storage: Can play media files from USB drives
Operating System: Linux 4.9 / Customized Linux OS
CPU: Quad-core ARM Cortex-A55 (GK6323)
RAM: 1 GB DDR3
Internal Storage: 8 GB eMMC
Expandable Storage: microSD/TF card support (up to 128 GB)
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
I am item content. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Related products
-
Z10 NEO
$699.00 Add to cart -
Z10
$699.00 Add to cart -

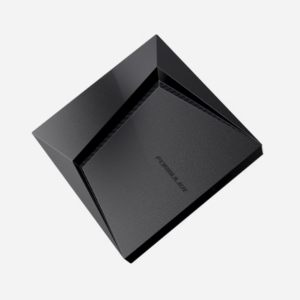

Z10 PRO MAX
$799.00 Add to cart -

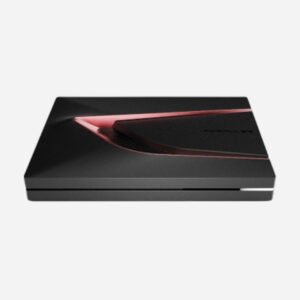

Z12 Ultra
