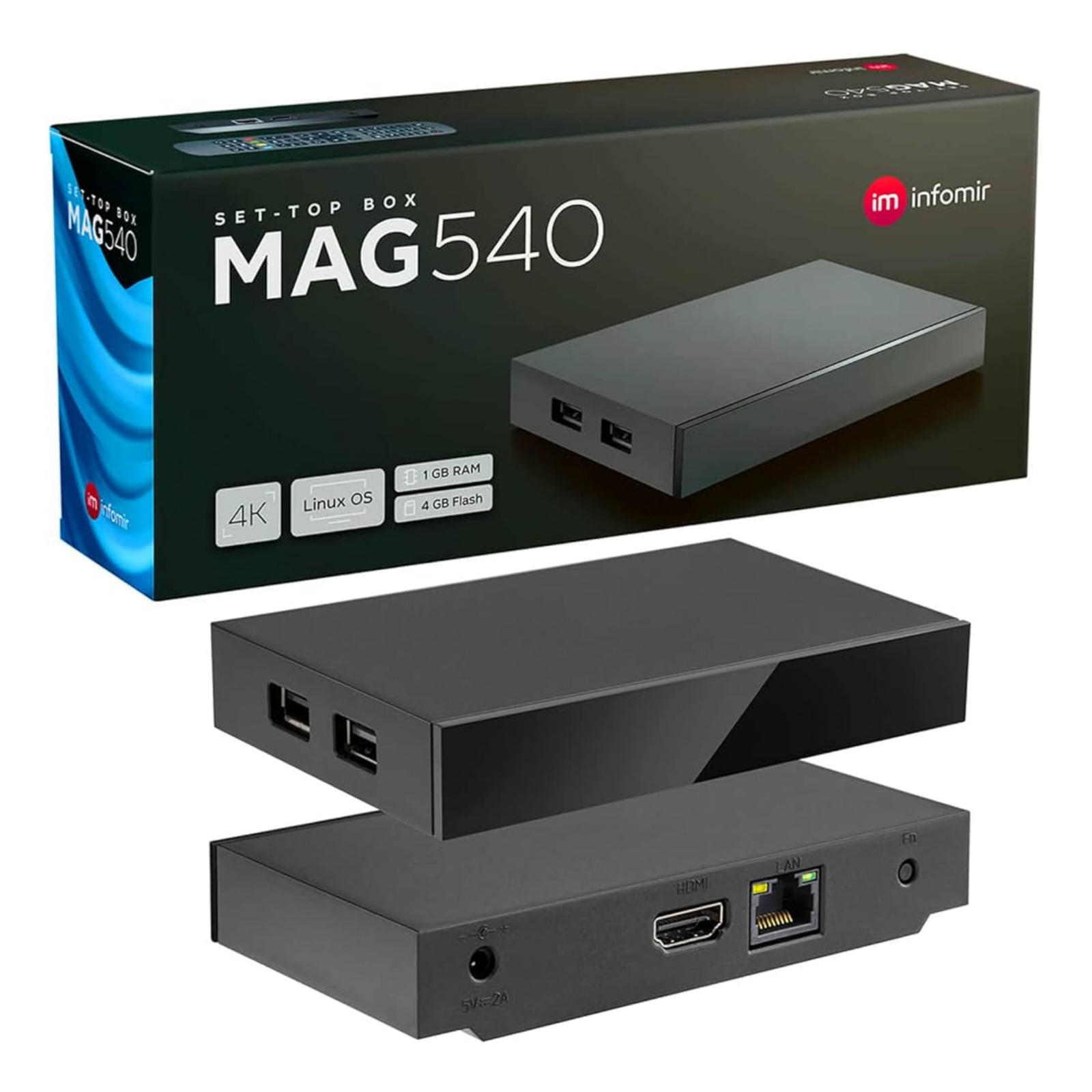

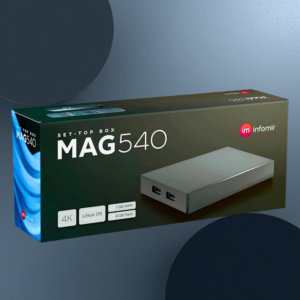

MAG540

$129.99

  • Ultra-HD 4K HDR Streaming Support – Enjoy smooth playback of ultra-high-definition content at up to 4K 2160p @60 fps with modern AV1 & HEVC codecs that reduce network load for stable streaming.

  • Powerful Performance Hardware – Built with a quad-core ARM Cortex-A35 CPU and Amlogic S905Y4 chipset, delivering responsive interface performance and reliable media playback.

  • Immersive Audio Experience – Supports Dolby Digital Plus™ surround sound to connect up to 8 channels and boost entertainment immersion on home theatre setups.

  • Flexible Media Compatibility – Plays a wide range of video formats and playlists (e.g., M3U/M3U8) and supports subtitles, making it ideal for IPTV, VOD, and local media playback.

  • Connectivity & Expandability – Features HDMI 2.1 output, Ethernet port, and multiple USB ports for peripherals like keyboards and external storage.

Category:

4K HDR, HDR10+, HLG, 4K 10-bit 60fps h.265, 4K 10-bit 60fps AV1

Best decoding technology

Specifications

  • Chipset: Amlogic S905Y4-B

  • CPU: Quad-core ARM Cortex-A35 @ 2.0 GHz

  • Performance: ~16,500 DMIPS

  • RAM: 1 GB LPDDR4

  • Internal Storage: 4 GB eMMC

  • Graphics: ARM Mali-G31

  • Ethernet: 1 × RJ-45 100 Mbps

  • Wi-Fi: Not built-in (Wi-Fi available in w3 variants)

  • Bluetooth: Not supported

Maximum Video Output

  • Up to 3840 × 2160 (4K) @ 60 fps

Supported Video Codecs

  • AV1

  • H.265 / HEVC (Main & Main10)

  • H.264 / AVC

  • MPEG-2

  • MPEG-1

  • MPEG-4 Part 2 (ASP)

  • XviD

  • 3D Video (Side-by-Side / Top-Bottom)

Supported Audio Codecs

  • MPEG Layer 1 / 2 / 3 (MP1 / MP2 / MP3)

  • AAC-LC

  • HE-AAC v1 / v2

  • APE

  • FLAC

  • Dolby Digital Plus (E-AC-3)

  • Size (W × D × H): 120 × 78 × 21 mm

  • Weight: ~110 g

  • HDMI: 1 × HDMI 2.1 (4K @ 60 fps)

  • USB: 2 × USB 2.0

  • Ethernet: 1 × RJ-45

  • Reset / Function Button: Yes

  • Power Supply: DC 5V ⎓ 2A

  • Optional regional adapter: DC 12V ⎓ 1A

  • CAS / DRM integration (operator level)

  • Middleware customization (RDK based)

  • Operator branding & firmware configuration

  • Portal-based IPTV deployment

Features
Description
Specifications

  • Chipset: Amlogic S905Y4-B

  • CPU: Quad-core ARM Cortex-A35 @ 2.0 GHz

  • Performance: ~16,500 DMIPS

  • RAM: 1 GB LPDDR4

  • Internal Storage: 4 GB eMMC

  • Graphics: ARM Mali-G31
Networking

  • Ethernet: 1 × RJ-45 100 Mbps

  • Wi-Fi: Not built-in (Wi-Fi available in w3 variants)

  • Bluetooth: Not supported
Decoder

Maximum Video Output

  • Up to 3840 × 2160 (4K) @ 60 fps

Supported Video Codecs

  • AV1

  • H.265 / HEVC (Main & Main10)

  • H.264 / AVC

  • MPEG-2

  • MPEG-1

  • MPEG-4 Part 2 (ASP)

  • XviD

  • 3D Video (Side-by-Side / Top-Bottom)

Supported Audio Codecs

  • MPEG Layer 1 / 2 / 3 (MP1 / MP2 / MP3)

  • AAC-LC

  • HE-AAC v1 / v2

  • APE

  • FLAC

  • Dolby Digital Plus (E-AC-3)
Dimensions

  • Size (W × D × H): 120 × 78 × 21 mm

  • Weight: ~110 g

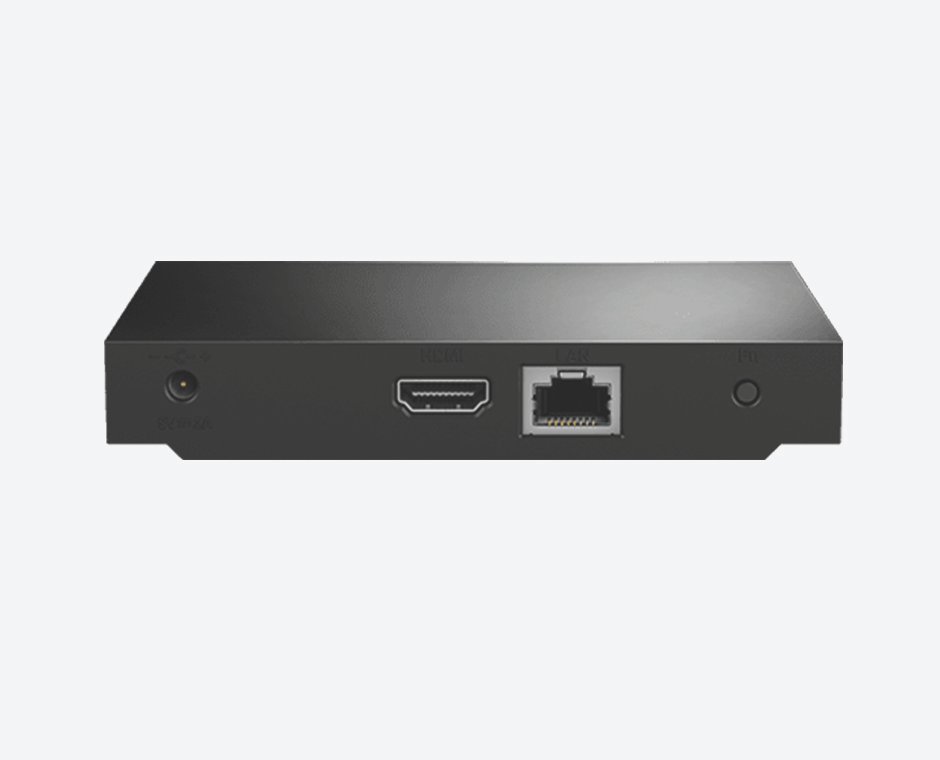

Ports

  • HDMI: 1 × HDMI 2.1 (4K @ 60 fps)

  • USB: 2 × USB 2.0

  • Ethernet: 1 × RJ-45

  • Reset / Function Button: Yes
Power input

  • Power Supply: DC 5V ⎓ 2A

  • Optional regional adapter: DC 12V ⎓ 1A
Optional

  • CAS / DRM integration (operator level)

  • Middleware customization (RDK based)

  • Operator branding & firmware configuration

  • Portal-based IPTV deployment
